BMC GII BPAP T-20A/25A/25T Bilevel CPAP Therapy Apnea COPD With Fingertip Pulse Oximeter SpO2 kit Full Face Mask Hose Humidifier

Description

CPAP & Mask

Oxygen Concentrator

CPAP

APAP

BPAP

Nasal Pillow

Nasal Mask

Full Face Mask

BMC-OC1

BMC-OC2

BMC-OC3

Blood Pressure Monitor

Pulse Oximeter

Other Products

BMC-BP1

BMC-BP2

BMC-BP3

BMC-OX1

BMC-OX2

BMC-OX3

Thermometer

Nebulizer

Nebulizer

ADVANTAGE

Res Rate: Respiratory Rate. Number of breaths per minute.

Rise Time: The time it takes for the device to change from EPAP to IPAP. You can adjust this time for your comfort.

Eco Smart heating system with innovative dual water chambers design, Storage Chamber VS Heating Chamber. Eco Smart warm up, high efficiency, lower water bills.

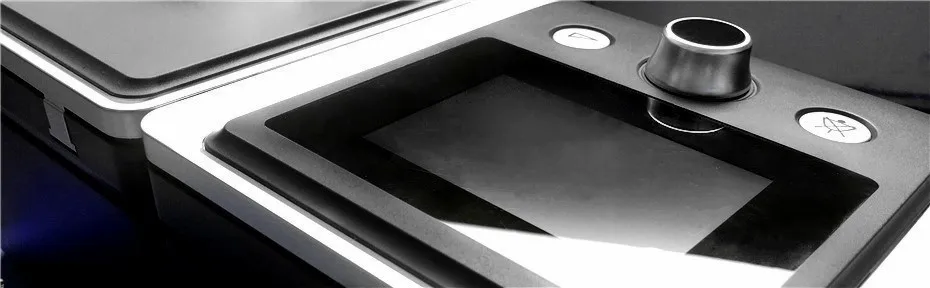

Color LCD screen will be convenient for you to see the data in the process of treatment. With an exquisite control knob, BMC RESmart GII Series brings you unsurpassed operational experience.

SpO2 kIit: Monitoring the blood oxygen saturation during sleeping, only suit for RESmart machine.Buy Separately
Oximeter: Blood oxygen saturation and pulse rate display, can be clearly seen during the course of therapy.

Reslex: Automatically reduce the treatment pressure when patient exhales, more comfortable.
Delay off: This will blow off the vapor left in the humidifier to avoid any damage to the device.

An audible alert will sound if the device is accidentally disconnected from power when it is delivering air. No alert message on the screen during a power failure.

Depending on the location of the region to choose a different setting, the machine will make the pressure compensation accordingly and automatically.

Compliance Data is encoded by iCode and it is easy to be transfered by smart phone iCode APP.
You can search and download it from Google play and APP store easily and conveniently.

4GB capacity of SD Card can fully record the patient’s treatment information data. Large capacity, easy operation, more comprehensive information access.

APPEARANCE

Buttons & Details

Mute Button: Press this button to mute the alert. Hold it for 3s,check iCode.
Knob: Start treatment and adjust device settings. Indicate the power supply statute.
Button Ramp: Enable the Ramp feature.
Outlet Air: Deliver humidified air to the patient; connect to the air tubing.
Observation Window: Observe the water level in the water chamber.
Water Inlet: The water inlet is in the bottom of the water storage tank.

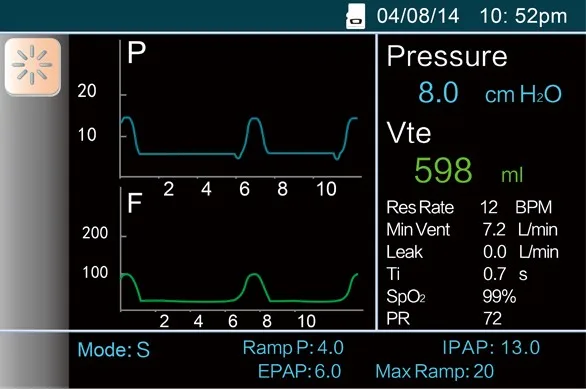

Screen Display
Breath Waveform: On the screen is the treatment of pressure and airflow waveform.
Monitoring Parameters: All kinds of monitoring parameters are displayed on the screen.
Ventilation Mode: Numerical of specific parameters in current mode.

Patient Menu

Option

Description

SpO2

Optional, please tell customer service if necessary

Humidifier

Let the inhaled air more humid, more comfortable

Ramp Time

Time to use the machine to enter treatment pressure

Mask Type

Select the type of mask you are equipped with

iCode

Scan iCode, access to treatment data

Brightness

The brightness of the machine screen is adjustable

*Notice: The patient’s menu will not cover all the machine functions and options, more settings included in doctor’s menu.

Doctor Menu

Option

Description

Mode

CPAP,S,T,S/T,Auto/S

Max Ramp

Take reference of average time for patients to fall asleep

Res Rate

Respiratory Rate. Number of breaths per minute

IPAP/EPAP

Set an expiratory pressure and suction pressure to assist in breathing and breathing

Ti Min/Max

The setting defines the patient’s longest and shortest breathing time, and is more secure

Rise Time

The time it takes for the device to change from EPAP to IPAP. You can adjust this time for your comfort

*Notice: We seriously recommend you to follow your doctor’s clinical advise before changing settings.

Packing List

Main Device

Humidifier

Tubing

Mask

Filter

Power Adapter

User Manual

Carrying Case

SpO2

Buy Separately

*Notice: If you want to change mask model, please leave note on the order page. Spo2 kit need to buy separately.

After-Sales Services

Payment

Invoice

Commercial Invoice is an Excel document ,if you need it,please contact BMC official store customer service ask for it.

Shipping

Global free shipping by express, to most regions only take 7-10 days.

Service

please contact our customer services if you have any question.

Reimburse

Necessary documents for local medical insurance reimbursement can be offered by BMC Medical.

Feedback

Sincerely hope you can provide us 5 Star good feedback, we will be really grateful if you could take photos of the product and upload into feedback.

Dispute & Refund

If have any issues or problems with the deal, please contact our customer services first, rather than directly open dispute. We’ll protect your rights and profits, also able to provide guidence with repair, replacement or refund.
